OTOFIX IM1 Professional Key Programming & Diagnostic Tool

OTOFIX IM1 is a professional automotive key programming, immobilizer service and diagnostic tool designed for workshops, automotive electronics specialists and professional locksmiths.

It supports PIN code reading, key programming, immobilizer component replacement, IMMO system identification, transponder reading/writing and EEPROM/MCU reading and writing.

The included OTOFIX XP1 Key Programmer expands the capabilities of the IM1 and enables a wide range of advanced immobilizer and key programming procedures.

Main OTOFIX IM1 Features

• Extensive vehicle coverage with support for more than 2,000 models across 60+ vehicle brands / series
• Smart IMMO functions
• Add Key and All Keys Lost programming
• PIN reading and PIN bypass functions for selected vehicles
• Transponder reading and programming
• EEPROM and MCU read/write functions with XP1
• Automatic vehicle identification using AutoVIN / ScanVIN
• Professional full-system vehicle diagnostics
• ECU information
• Read and erase diagnostic trouble codes
• Live Data
• Advanced service functions
• OTOFIX Cloud services
• Support for 18+ interface languages
• 2 years of free software updates
• 2-year warranty

Professional Key & Immobilizer Programming

OTOFIX IM1 supports an extensive range of vehicle manufacturers including BMW, Volkswagen, Audi, Ford, GM, Mazda, Nissan, Hyundai, Kia, Toyota and Mercedes-Benz.

Together with the included XP1 Key Programmer, the device supports key and transponder read/write operations as well as EEPROM and MCU memory functions.

Supported IMMO functions include:

• OBD key programming for a wide range of supported vehicles
• Key programming for Volkswagen IV, V and MQB immobilizer systems
• All Keys Lost programming for selected Volkswagen systems
• Add Key and All Keys Lost programming for BMW CAS1–CAS4 and FEM/BDC systems
• PIN bypass key programming for selected 2005–2020 Ford vehicles
• Password/data reading for Hyundai and Kia ID46, ID47, 4A, 8A and other key types
• Add Key and All Keys Lost procedures

Please note: available functions vary depending on vehicle model, production year, immobilizer system and software version.

OE-Level Vehicle Diagnostics

OTOFIX IM1 can also be used as a professional automotive diagnostic scanner.

Diagnostic capabilities include:

• Full-system vehicle diagnostics
• ECU information
• Diagnostic Trouble Code reading
• DTC clearing
• Live Data
• Guided functions for selected Volkswagen and Audi vehicles
• Advanced Volkswagen and Audi functions
• Online Coding for supported vehicles
• Online IMMO functions for supported vehicles

Additional diagnostic and service functions may be available through optional software packages or subscriptions.

AutoVIN / ScanVIN Technology

Built-in AutoVIN / ScanVIN technology allows the IM1 to automatically identify compatible vehicles using the VIN number.

It can automatically determine:

• vehicle manufacturer;
• model;
• model year;
• available diagnostic and programming functions.

This significantly reduces manual vehicle selection and helps speed up workshop operations.

Advanced Optional Functions

Depending on the vehicle and additional accessories used, OTOFIX IM1 may support additional advanced functions.

Mercedes-Benz

• All Keys Lost procedures;
• immobilizer component renewal;
• XP1 Pro may be required for selected functions.

BMW

• FEM/BDC and CAS ECU replacement procedures;
• Bench ISN reading;
• selected functions may require an additional G-Box adapter.

Volkswagen / Audi

• PIN reading;
• MED17 and MQB immobilizer functions;
• ECM replacement and immobilizer procedures.

Toyota

• selected All Keys Lost functions for 8A transponder systems;
• additional APB112, G-Box and 8A AKL accessories may be required.

Ford / Mazda

• PIN bypass functions;
• parameter reset and programming procedures for selected models.

Mitsubishi

• All Keys Lost programming for selected ID47 Smart Key systems.

OTOFIX Cloud Services

The OTOFIX ecosystem can provide additional online services including:

• Remote Expert support
• Diagnostic report sharing
• Diagnostic case database
• Device management
• Cloud storage of service and diagnostic reports

Availability of specific cloud features may depend on the region, software version and active subscription.

OTOFIX IM1 Specifications

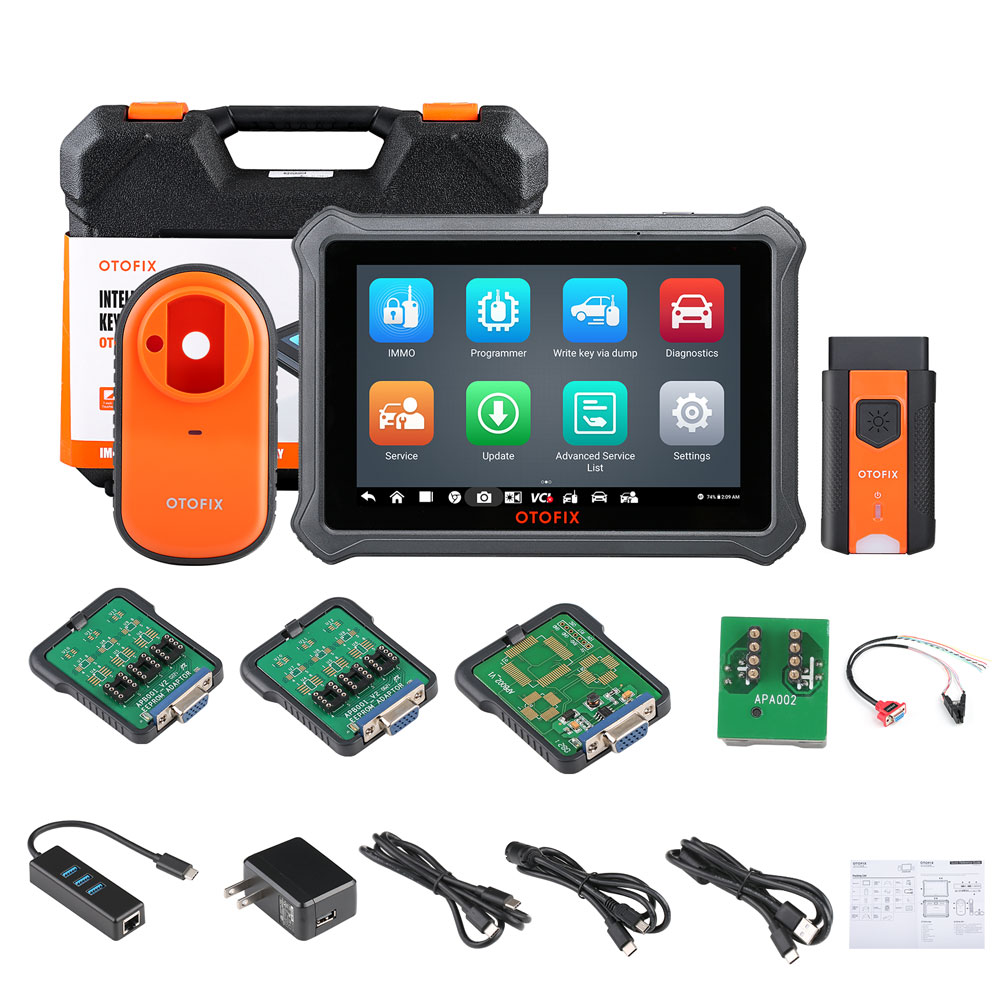

Package Contents

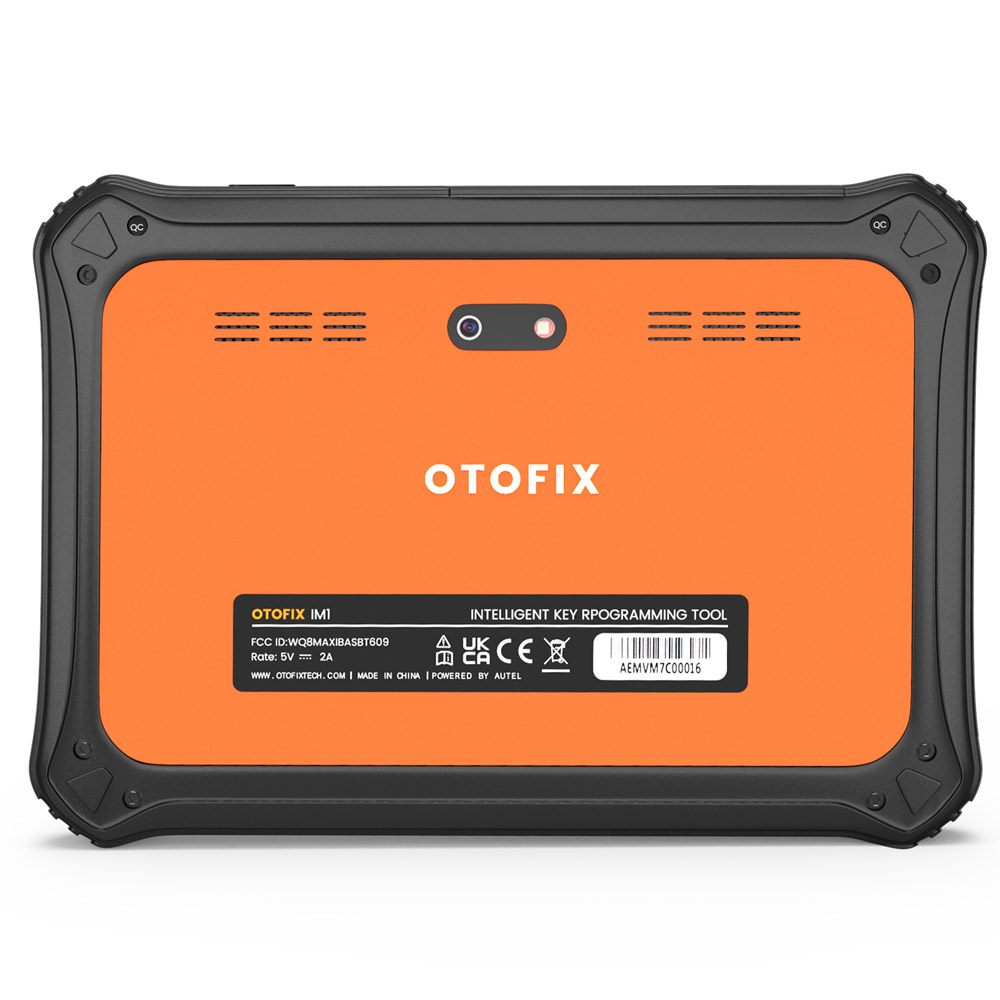

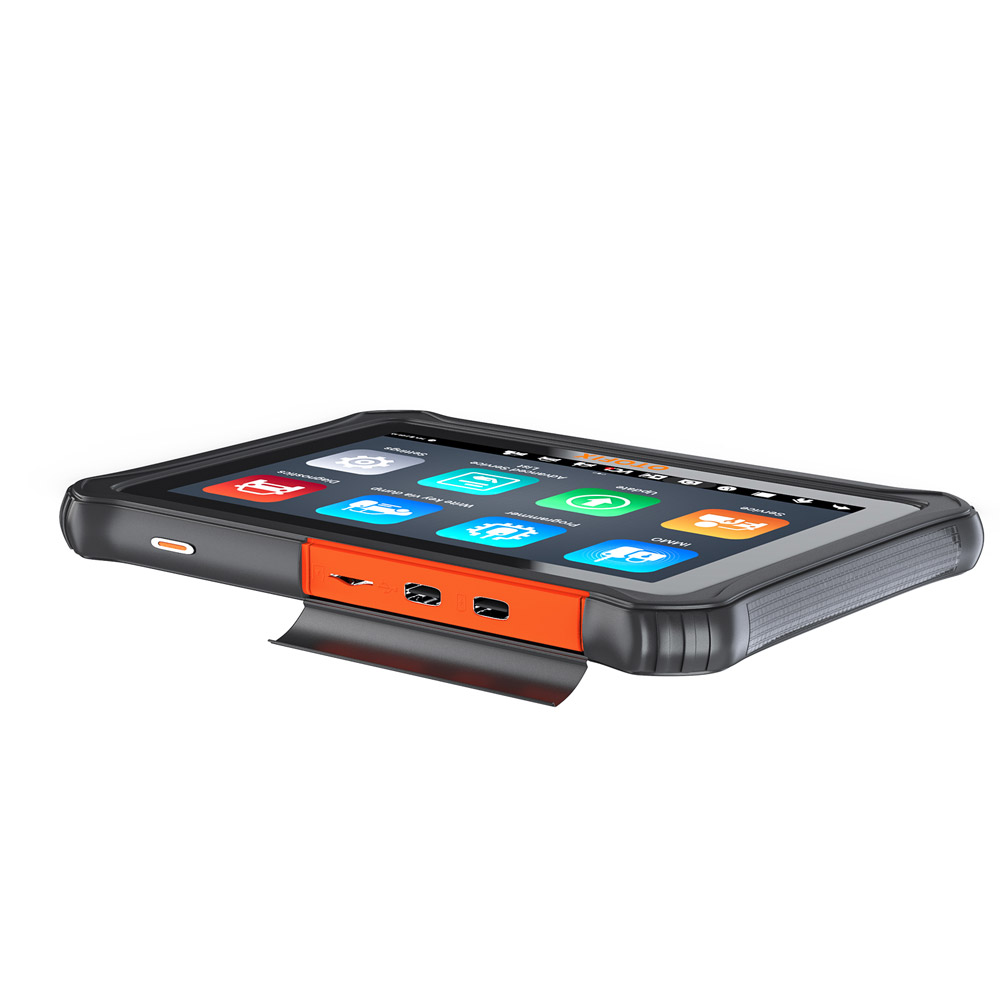

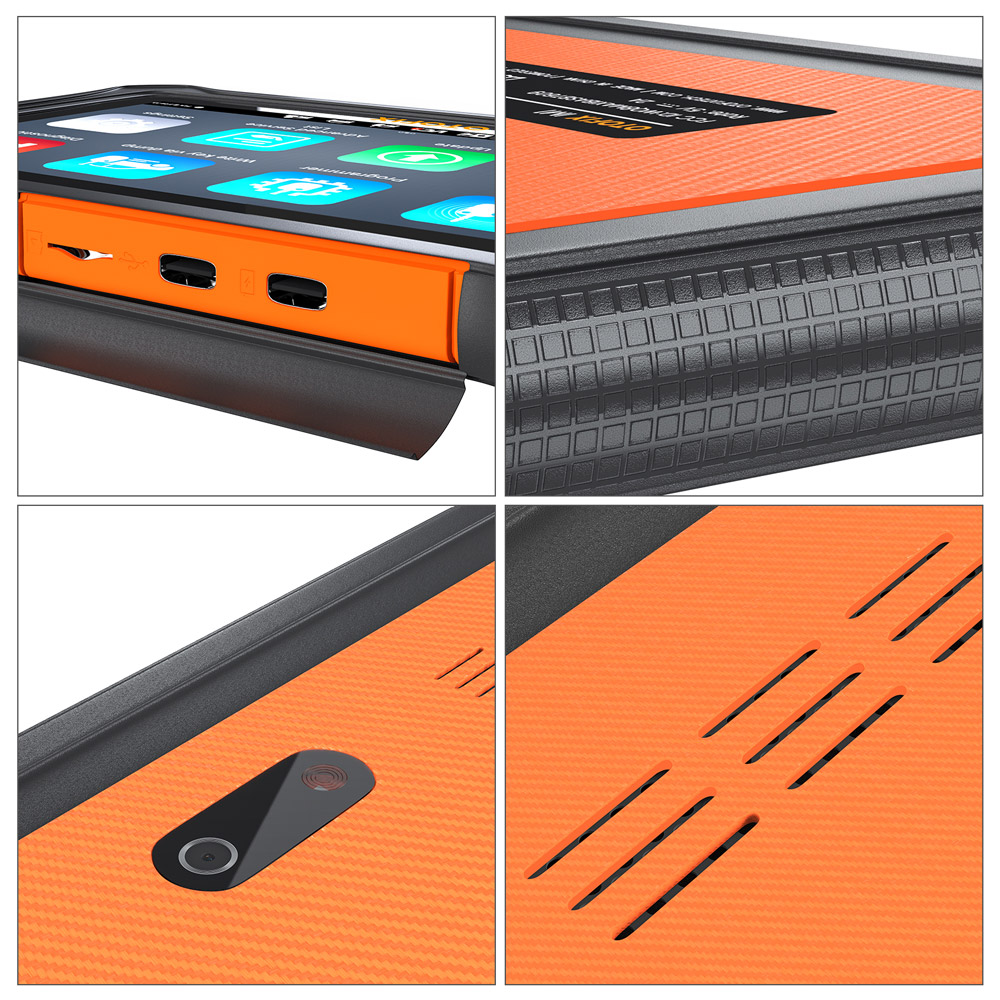

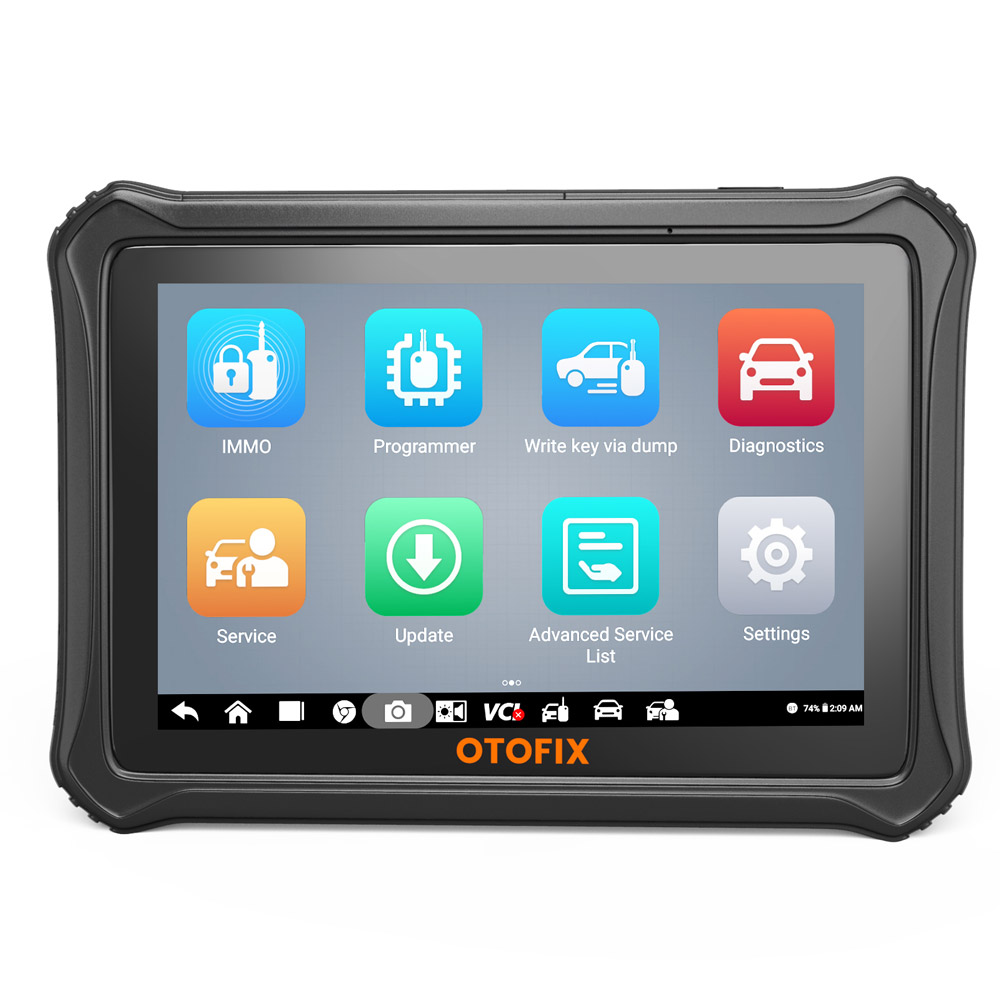

• 1 × OTOFIX IM1 main unit

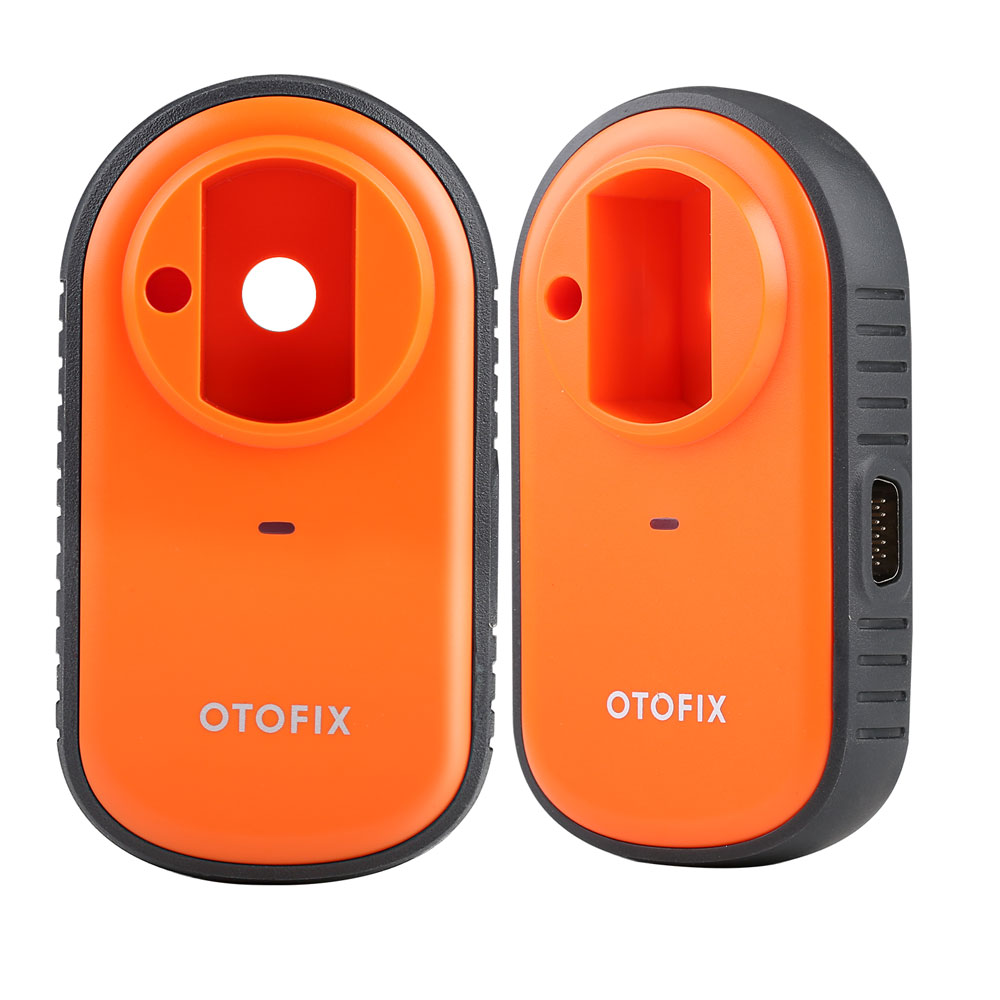

• 1 × OTOFIX XP1 Key Programmer

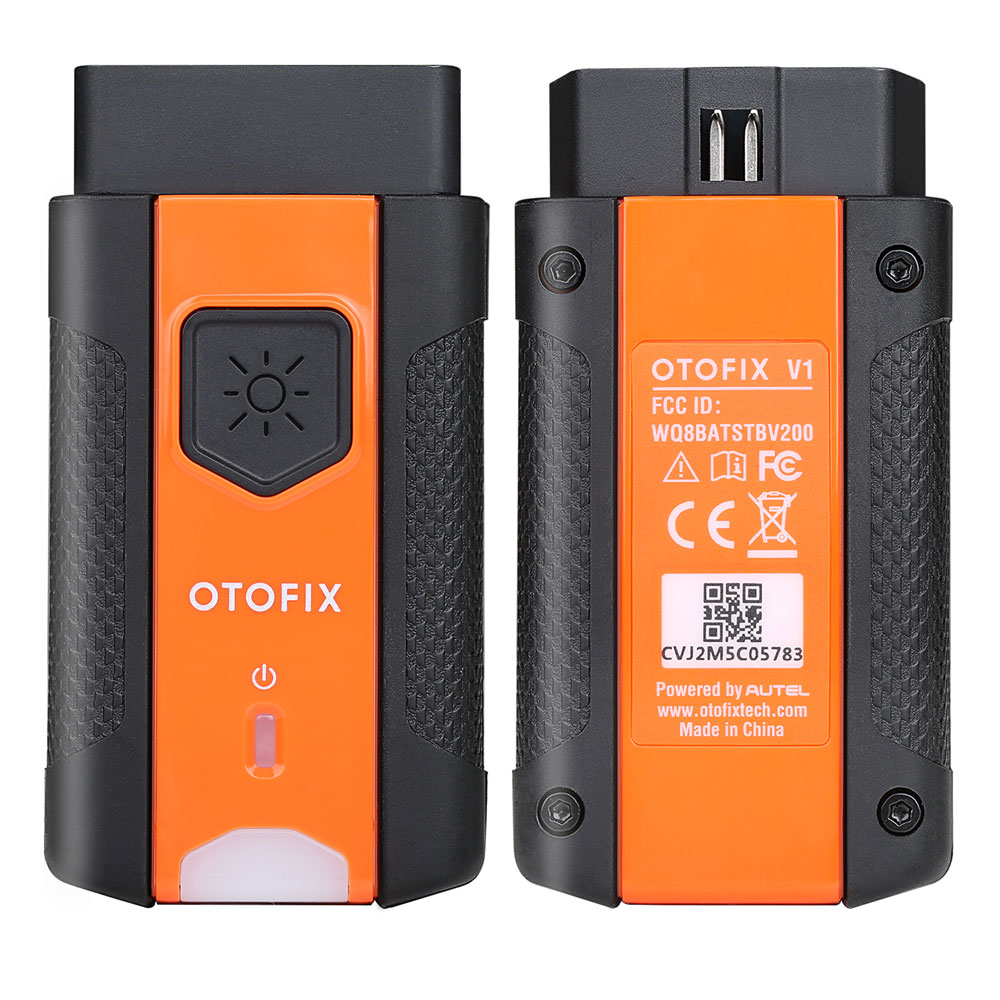

• 1 × OTOFIX V1 VCI
• 1 × APA001
• 1 × APA002
• 2 × APB001
• 1 × APB002
• 1 × USB-C to USB-C cable
• 1 × USB-A to USB-C cable
• 1 × USB-C to Mini USB cable
• 1 × power adapter

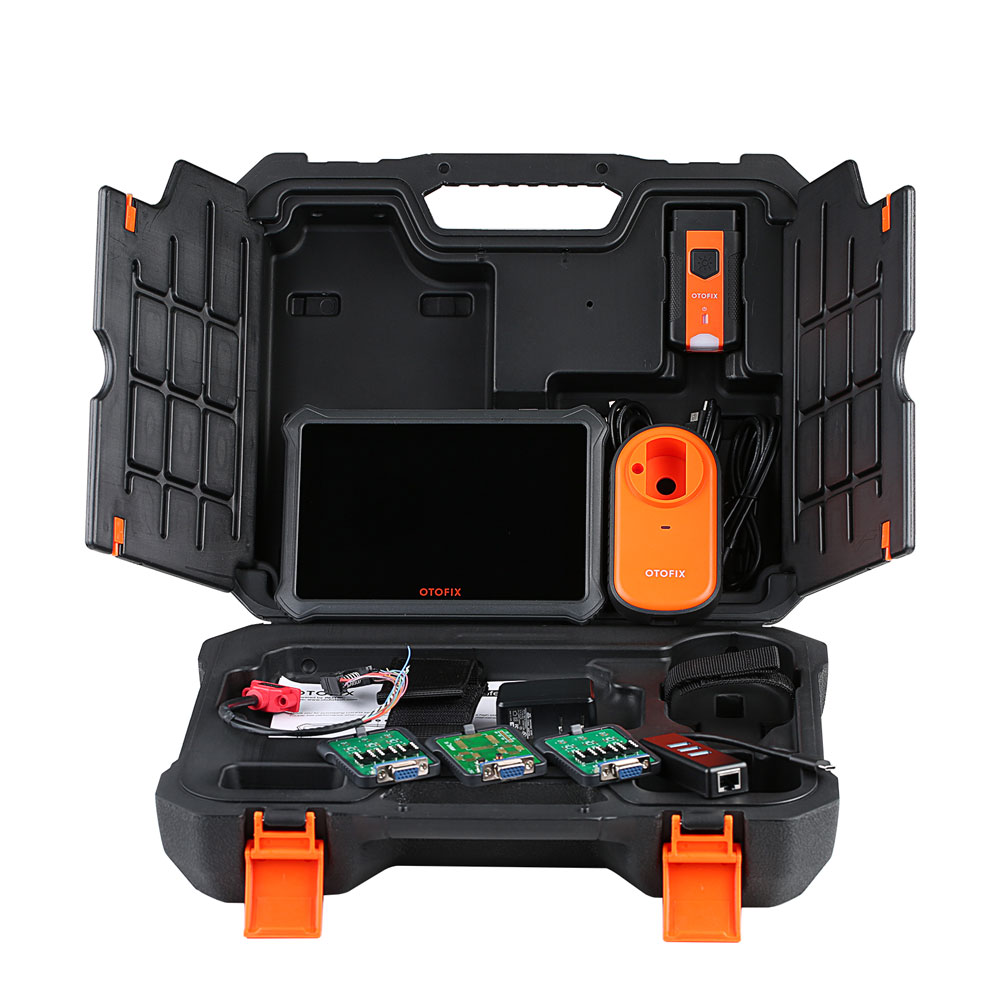

• 1 × carrying case
• 1 × quick reference guide

Important

Specific key programming, immobilizer and diagnostic functions depend on vehicle make, model, production year and control system. Some advanced functions may require additional adapters or an active software subscription.
